Building Specs
Experience the Craftsmanship in Every Detail

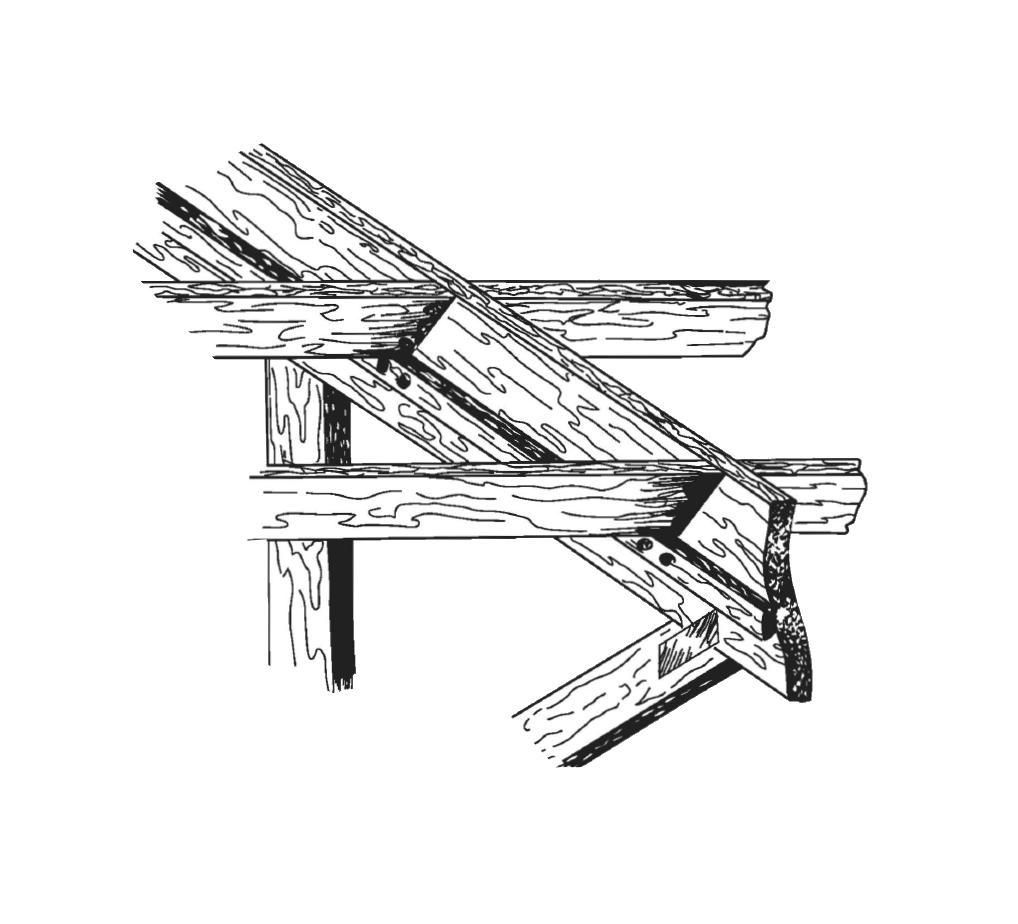

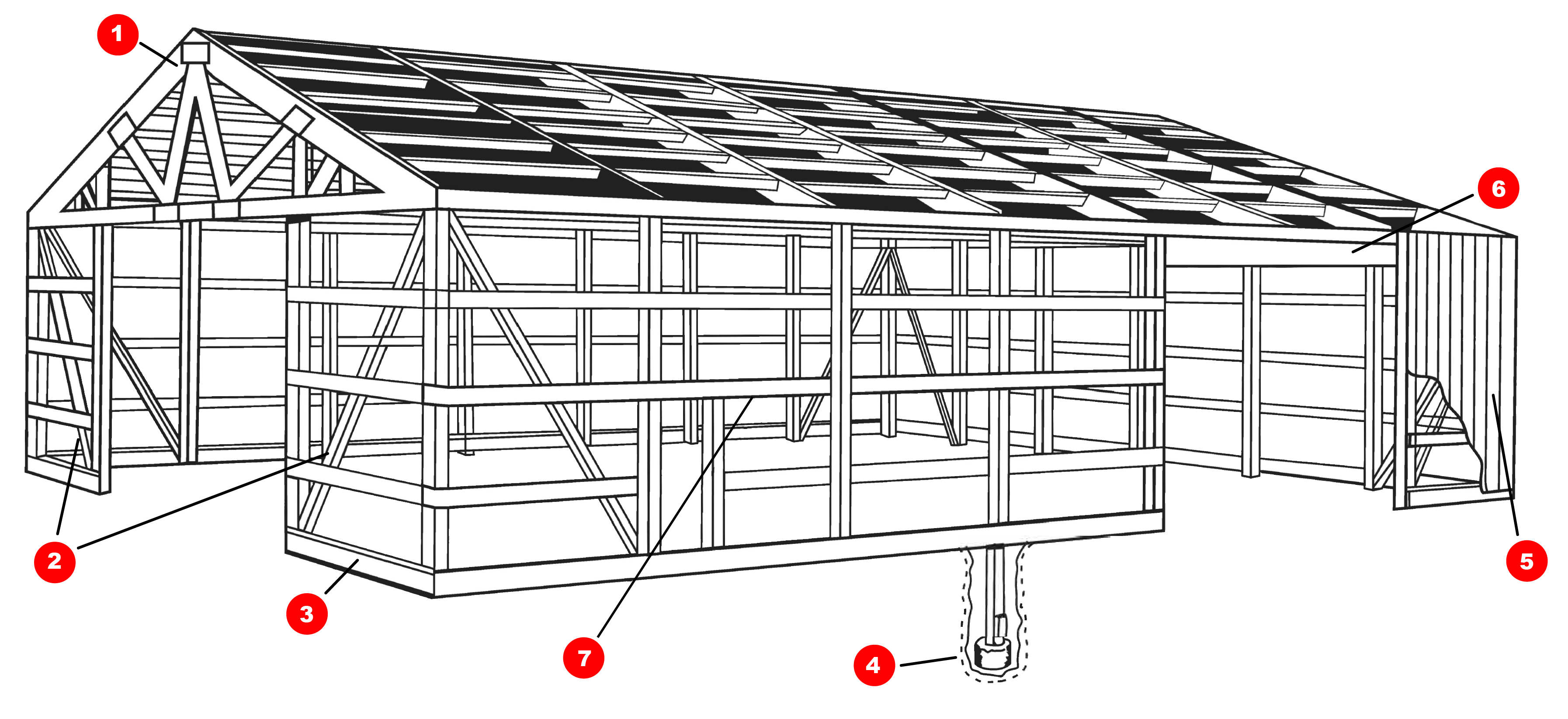

1. Engineered Trusses
All Ragland Trusses are engineered and fabricated by an independent agency to meet or exceed building codes.
All trusses utilized bottom lateral bracing as specified by the Truss Plate Institute. Trusses also have gable bracing which also resists wind pressure.
2. Corner Bracing
Protects building against wind stress.
3. Treated Splash Board
Helps prevent damage to metal siding caused by contact with the ground.
4. Full Concrete Pad
Helps prevent settling by providing solid footings for columns and helps prevent wind uplift.
*Additional Foundation options available – See resources.
5. Metal Roofing & Siding
All Ragland Buildings metal is designed for durability and for long service life. See steel manufacture warranty for details.
6. Ragland Door Headers
Engineered wood headers or steel I-beam headers.
7. 2x6 Wall Girts
Provides superior strength compared to the commonly used 2 x 4 girt

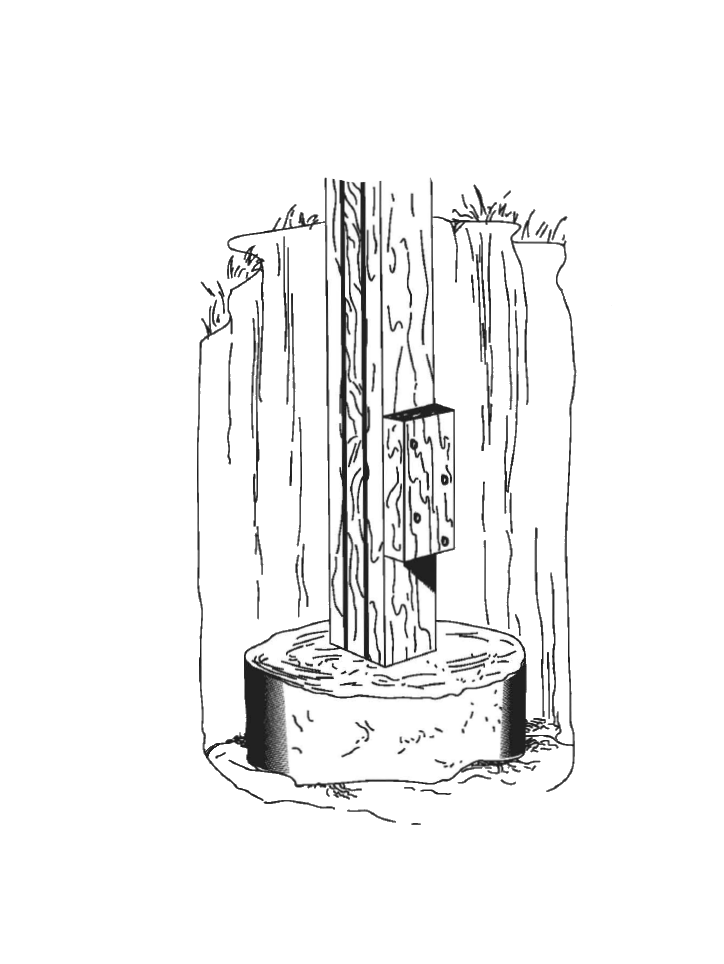

Anchoring Blocks
Our anchoring blocks method helps prevent wind uplift and create an extra solid footing for columns.
2 x 6 Roof Purlins
Placed in between trusses to increase strength throughout the entire roof system. Purlins are flush with top chord to help deter bird nesting.

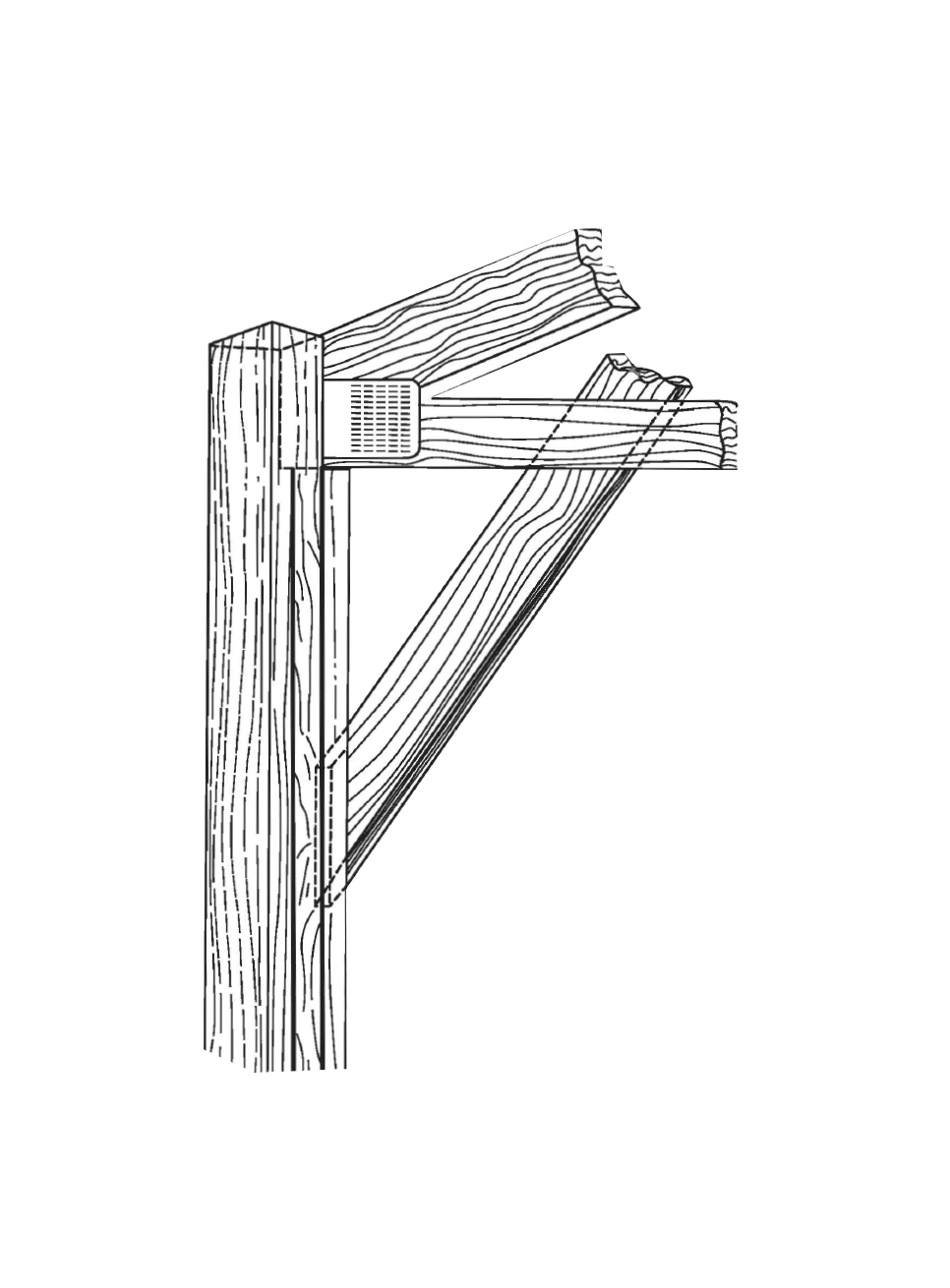

Notched Columns & Knee Bracing
For full load bearing, and protection against wind and snow loads.
